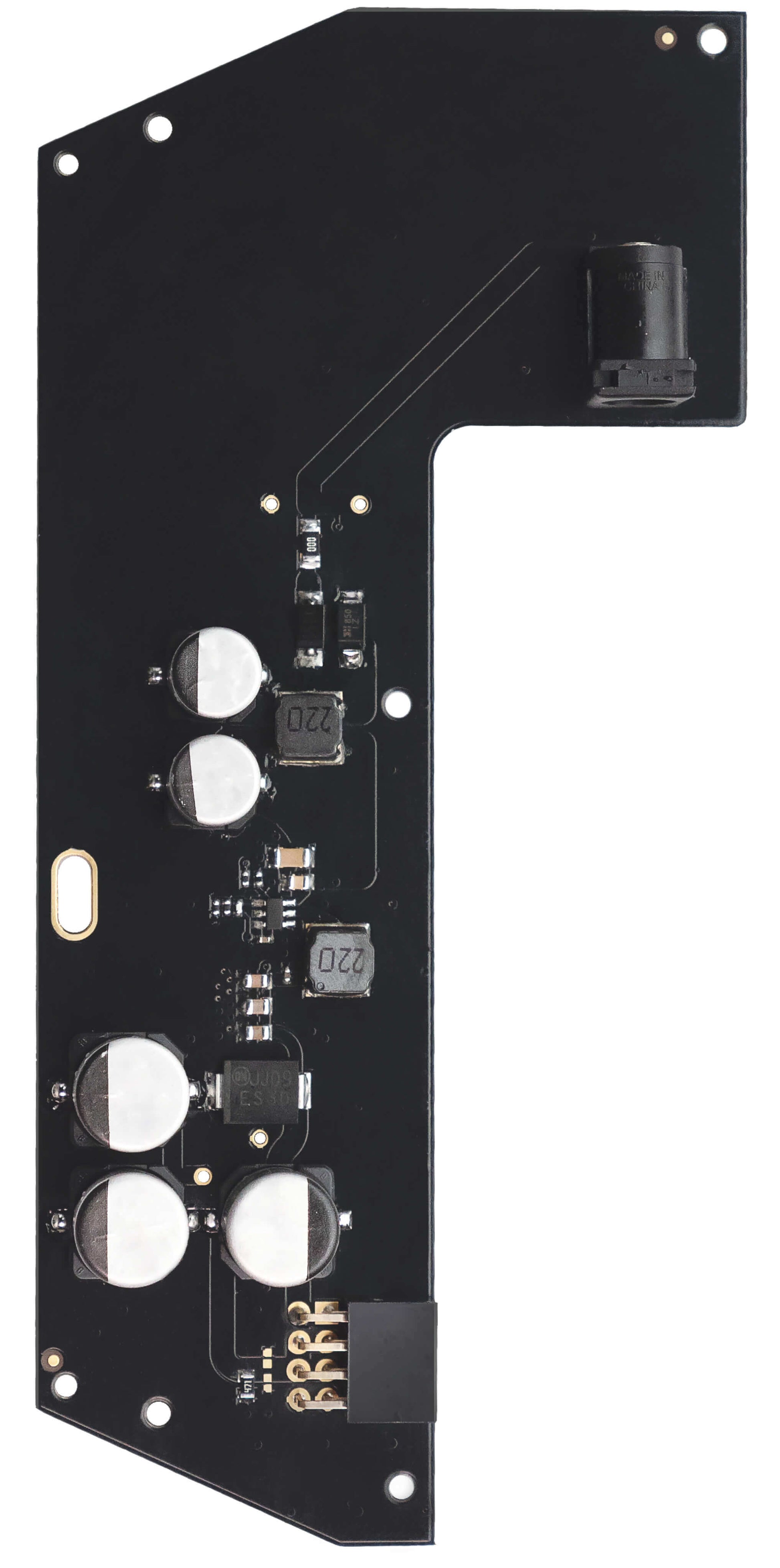

• Ajax 12v PSU for Hub/Hub Plus/ReX for back up battery power, Device is 138 Ă— 64 Ă— 13 mm, 30 grams in weight, This device gets installed into the Hub 2, Hub plus and ReX. Front view of device.

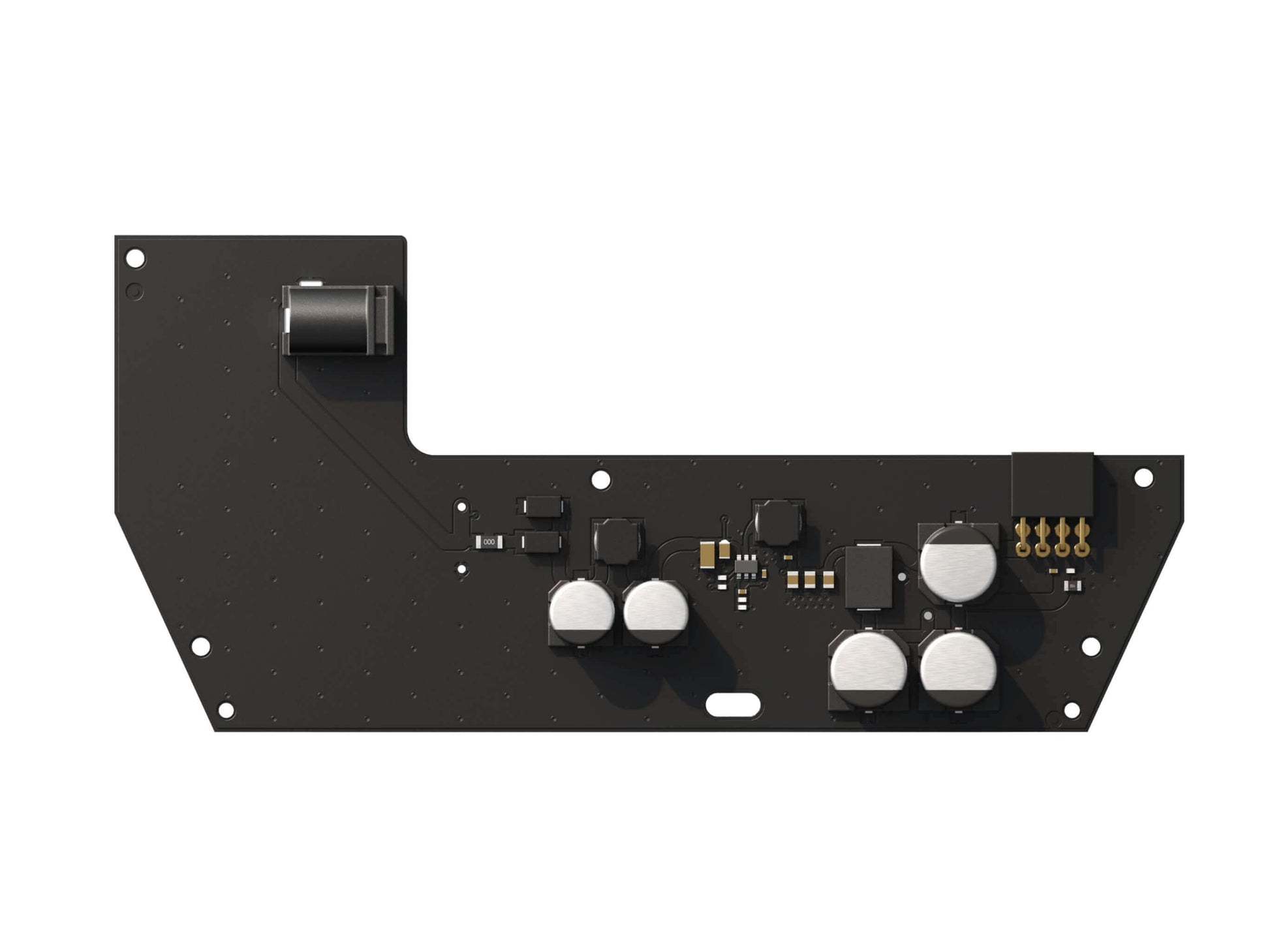

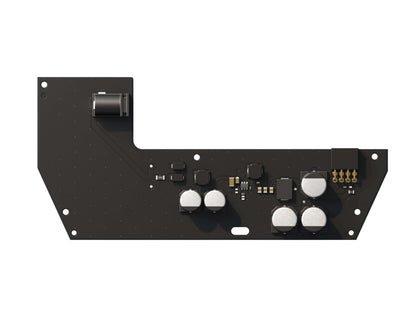

  • Ajax 12v PSU for Hub/Hub Plus/ReX for back up battery power, Device is 138 Ă— 64 Ă— 13 mm, 30 grams in weight, This device gets installed into the Hub Hub 2 and ReX. Side view of device.
1 2

Ajax Security Systems

Ajax 12V PSU - Uninterrupted Power Supply Solution

Ajax 12V PSU - Uninterrupted Power Supply Solution

R 527.00
R 527.00
Sale Sold out
The Ajax 12V Backup Power supply unit connects  to your Hub Plus control panels and ReX range extender for uninterrupted backup power.
The Ajax 12V PSU can be connected to external sources that use 12volt power.  Turn the your device into a portable security system and connect your device to your car, yacht or truck. Connect external power sources such as solar panels, making it a perfect solution for extended periods of no power.
12volt Power supply for Ajax Security Systems, take your Ajax System anywhere

Ajax 12V PSU Module Key Features:

  • Input voltage: 8 - 20 VDC
  • Output voltage: 4.65 VDC ± 3%
  • Switch on voltage: 8 VDC ± 2.5%
  • Switch off voltage: 6.9 - 7.5 VDC (depending on load)
  • Max input current: < 1 A
  • Max output current: 1.5 A
  • DC jack: 5.5 Ă— 2.1 mm
  • Dimensions: 138 Ă— 64 Ă— 13 mm

Ajax 12V PSU Downloads:

Learn How to Install12V PSU for Hub/Hub Plus /Rex
